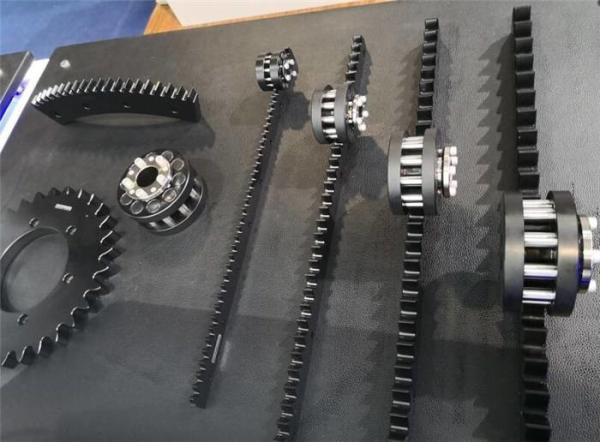

Heat Treatment 45# Zinc Plated Round gear rack Pinion Gear Rack
Our spur and helical gear racks are welcomed by many customers for
its stable high quality and competitive price.
The producing character of LYHX gear racks.
1. Gear rack length: the longest is 4000mm without joint. It can be
jointed to any length.
2. Material: steel C45, stainless steel, high strength steel,
copper, aluminium, nylon, plastic, POM etc;
3. Module: 0.3-8 (pitch from 0.942-25.12mm, DP 3.175-85);
4. Surface: zinc (galvanized), black, chromium plating, nickel
plating, quenching and tempering etc.
5. Quality: stable and high: accumulated tolerance 0.1mm per 1000mm
for normal quality;
Accumulated tolerance 0.02mm per 1000mm for 4 sides ground.
Prices for above quality are very competitive for us.
6. Heat treatment: teeth can be hardened to HRC 43-50.
The quality character of LYHX gear racks:
1. Stable transmission and low noise;
2. Effectively avoid normal tolerance based on high precision;
3. The surfaces can be ground to grade 7 quality, and teeth can be
ground to grade 6 quality;
4. The mounting holes can be made as request;
5. The price is competitive even the quality is high.
| Facilities | Machining center; CNC gear hobbing machine; CNC gear shaper; CNC gear grinding machine; CNC turning machine; CNC milling machine. Y58200 CNC large gear rack shaper, Y58125A gear rack shaper, England gear rack shaper and Russia gear rack shaper, Gleason machine. |
| Material | Steel: C45, Q235, 40Cr, 20CrMnTi, etc. Stainless steel: 301, 201, 304, 316 etc. Brass: H59 H68 H80 H90 etc. Aluminium: 6082, 6061, A380 etc. Aluminium alloy: 6061, 5083, 7050, etc. More: PA6, PA66, POM, ABS etc |
| Teeth type | Spur teeth gear rack; Helical teeth gear rack; Round gear rack; Tube gear rack; Curved gear rack. |
| Surface | Polishing; Plating; Galvanized; Black; chromium plating, nickel plating; painting etc. |
