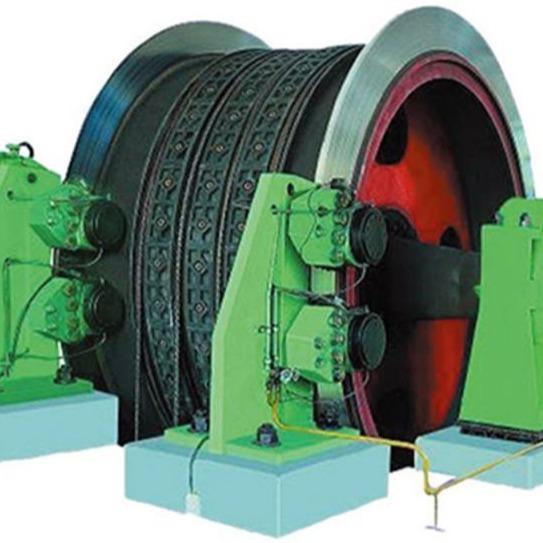

1000r/min Dia 5.0m Single Rope Double Drum Mine Hoist For Coal Mine

2JK series single-rope double drum mine hoist for coal mine

1.technical parameter

Product serial number	reel				Maximum static tension of wire rope		Maximum static tension difference of wire rope		Maximum diameter of wire rope	Sum of minimum wire breaking tension	Lifting height			Maximum lifting speed (not greater than)	Speed ratio is preferred	Rotating part displacement weight (except motor and sky wheel)	Reference weight (without motor, electric control)	Dimensions (L * W * H)	Motor speed (not greater than)
	Number	diameter	width	Center distance of two reels	Manned	Load	Manned	Load			One layer of winding	Two layer of winding	Three layer of winding
		m		m	KN				mm	KN	m			m/s		Kg	Kg	m	r/min
JK-2*1.5	1	2.0	1.50	/	44	61	44	61	24	396.5	295	586	914	5.2	20.0	6600	24100	10.58.72.9	1000
															31.5	7242
JK-2.5*2		2.5	2.00		69	83	69	83	30	621	403	802	1245	5	20.0	13679	39460	12.89.72.9	750
															31.5	13317
JK-3*2.2		3.0	2.20		100	135	100	135	36	900	447	887	1378	6	20.0	19000	58340	13.510.52.9
															31.5
2JK-2*1	2	2.0	1.00	1.09	44	61	40		24	396.5	177	346	550	7	11.2	9740	29300	12.79.52.9	750
															20.0
															31.5	10021
2JK-2.5*1.2		2.5	1.20	1.29	69	83	65		30	621	215	422	670	8.8	11.2	13707	40470	13.89.52.9
															20.0	13695
															31.5	13675
2JK-3*1.5		3.0	1.50	1.59	100	135	90		36	900	282	553	873	10.5	11.2	21690	56924	14.4102.9
															20.0	22588
															31.5	22336
2JK-3.5*1.7		3.5	1.70	1.79	136	170	115	115	42	1230	324	635	/	12.3	11.2	26171	75456	15.110.42.9
															20.0	26526
2JK-4*2.1		4.0	2.10	2.19	216	245	160	160	50	1962	405	790	/	12.6	11.2	42400	106000	18.810.82.9	600
															20.0	42400
2JK-5*2.3		5.0	2.30	2.39	280		180	180	62	2520	458	895	/	12	11.2	49272	146625	16.712.42.9	500
															20.0

2.Application Range:
This series of products are used in coal mines, metal mines and non-golden mine elevators, minerals, lifting personnel and lowering materials, equipment, etc., and can also be used for other traction transportation.
